Impact Testing Machine

• Safety Performance Test Equipment for Safety Glazing Materials Used in Buildings
• Safety Glass Impact Testing Equipment

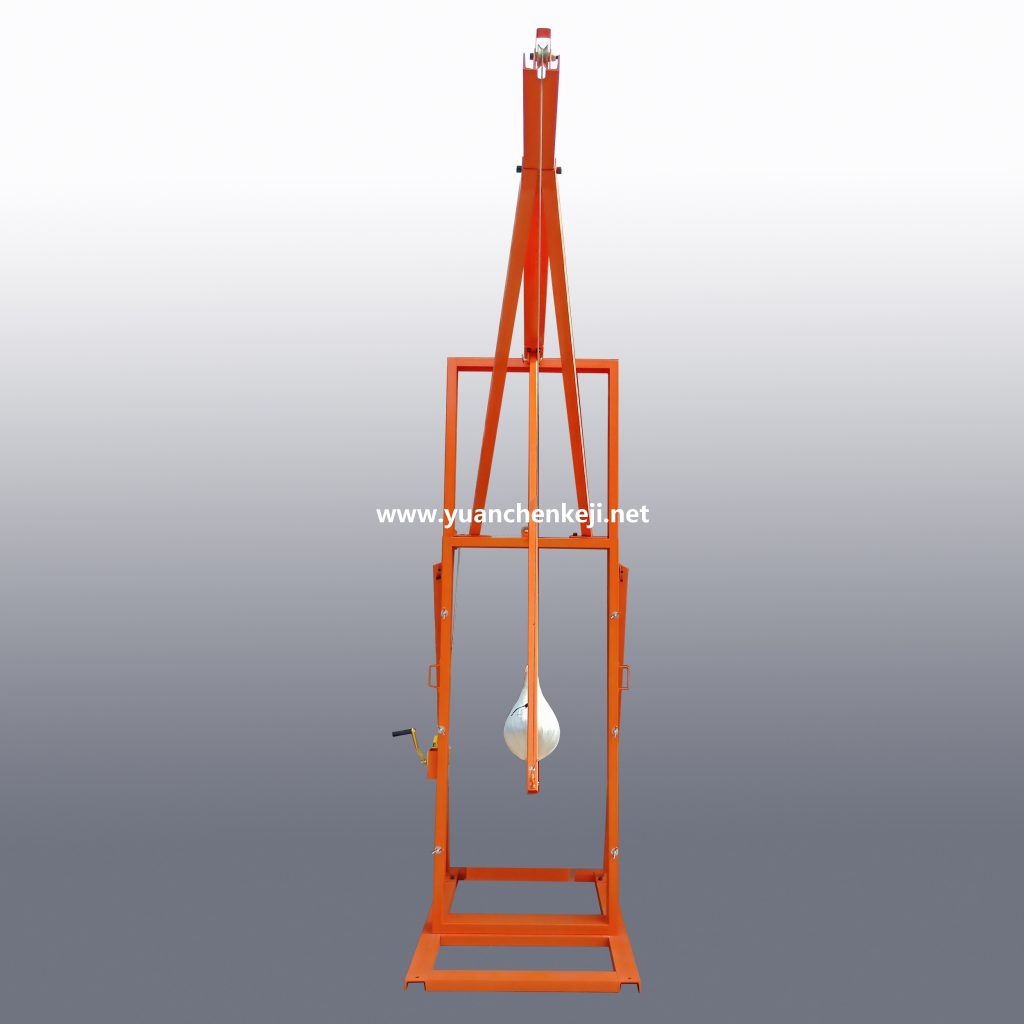

Test device for the impact performance of shot bag 45kg for Safety glazing materials in buildings

Related Standards:
AS/NZS 2208 Safety glazing materials in buildings – Appendix D: Impact Test
GB 15763.3 Safety glazing materials in building Part 3: Laminated glass – Appendix C: Test device for the impact performance of shot bag
ANSI Z97.1 Safety Glazing Materials Used in Buildings – Safety Performance Specifications and Methods of Test – Clause 5.1: Impact Test

Application:
Determining the resistance of glazing materials to impact by the penetration method

Test Frame:
Frame Size: 1900mm × 1500mm × 3570mm
Samples Size: 1930mm × 864mm
Lift: Electric
Release: Auto
Maximum impact height: 1200mm (customized)
Rubber Pad Width: 15mm
Rubber Pad Thickness: 3mm
Rubber Pad Hardness: Shore A50
Impact Shot Bag:
Reinforced leather bag filled with lead shot
Technical Data:
Weight: 45kg ± 0.1kg 46kg ± 0.1kg
Height: 330mm ± 13mm
Max diameter: 250mm
Lead sand size: 2.5mm
Customized: 25kg 48kg
